Oval Shelf - CNC File

Oval Shelf - CNC File

Narrow Side Table - Originally designed for Kristina's sister, Liz and her small Philly apartment

Digital Download

$10.00
$10.00
Sale Sold out
Shipping calculated at checkout.

990 in stock
View full details

Meet the Oval Shelf – a sleek, modern storage piece that’s all clean curves and easy builds. This shelf is sturdy, stylish, and designed to come together fast with just a few clean CNC cuts.

Included in your download:

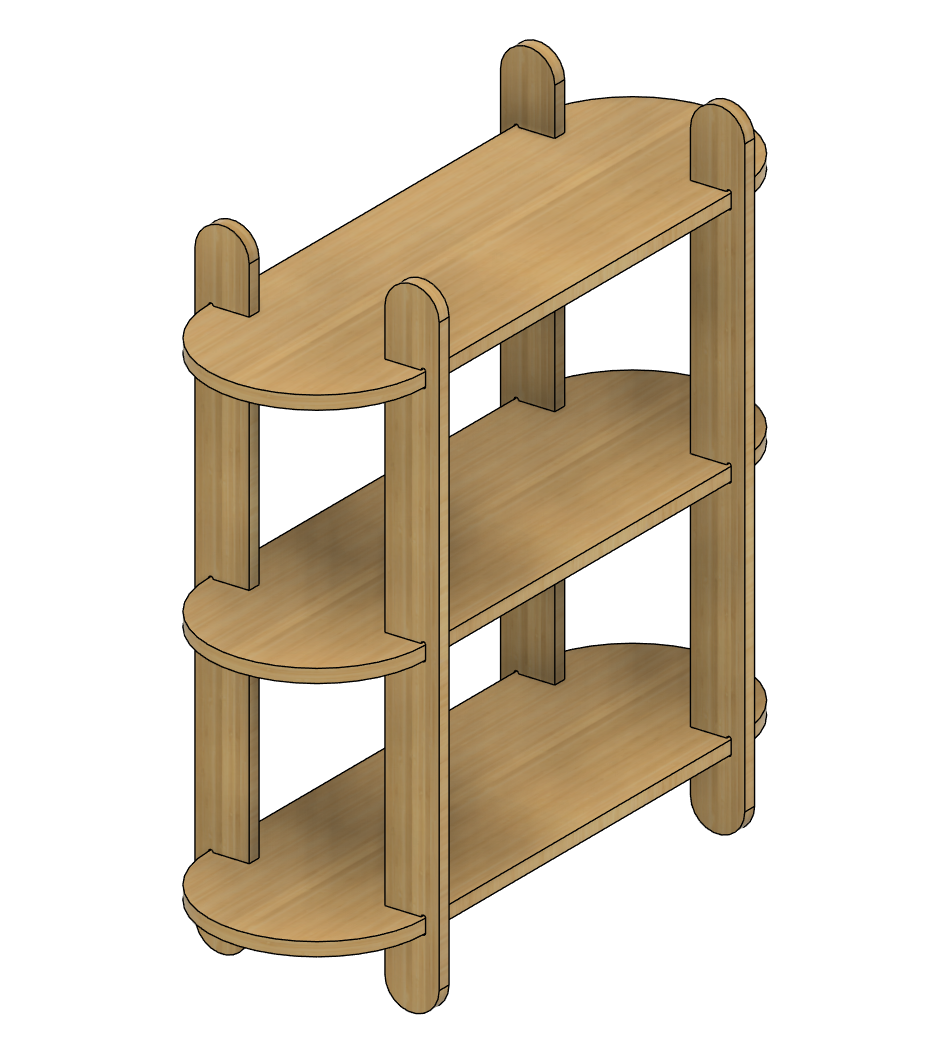

  • 🖼️ Oval_Shelf.png – Render of the finished design

  • 📄 Oval Shelf Drawing v1.pdf – Assembly + measurements guide

  • 🪵 Oval Shelf.f3d – Parametric Fusion 360 model

  • ✂️ OVAL TOP DXF.dxf – Cut-ready shelf surfaces

  • ✂️ OVAL LEG DXF.dxf – Upright supports with slotted joinery

Designed to be repeatable, this project is perfect for craft fair prep, home storage, or just leveling up your CNC skills.

Details

Dimensions

Materials

Please note that this listing is for a digital file, and not a physical product. The images are for illustrative purposes only and made with 3/4" (milled 4/4 lumber) Cherry and walnut.

No Assembly Required

Prepare Materials: Gather all necessary materials. Ensure that your chosen wood is of suitable quality and dimensions for the project. 3/4" Plywood is used in the images. Files included for 0.720” plywood thickness and 0.750” material thickness .

Cutting (CNC): Utilize the provided DXF file to accurately cut the table components using a CNC machine. Follow the cutting instructions carefully to achieve precise results.

Assembly: Assemble the table components by plugging the legs into the top. Ensure a snug fit for stability and structural integrity.

Finishing Touches: Once assembled, you may choose to apply a finish or stain to enhance the appearance of your table. Allow sufficient time for the finish to dry before using the table.

Note: Please exercise caution and follow all safety guidelines when operating machinery or tools. Always wear appropriate protective gear and work in a well-ventilated area.
