Mia Shelf CNC File

Mia Shelf CNC File

$10.00
$10.00
Sale Sold out
Shipping calculated at checkout.
View full details

It's named after our first dog. It's soft and a little playful, but still clean enough for a bathroom or an entryway.

It cuts fast and fits together tightly. The side profiles are notched, so the shelves slot right in.

What's in the download

  • MIA SHELF DXF: nested file with every part
  • MIA TOP DXF and MIA SIDE DXF: the individual parts
  • Mia PDF: assembly and part guide
  • Mia F3D: parametric Fusion 360 model
  • Render of the finished shelf

Specs

  • Finished size: [size]
  • Material: 3/4" plywood (.71" actual) or hardwood
  • Bit: 1/4" end mill

Good to know

  • Digital download, so nothing ships.

Materials Needed

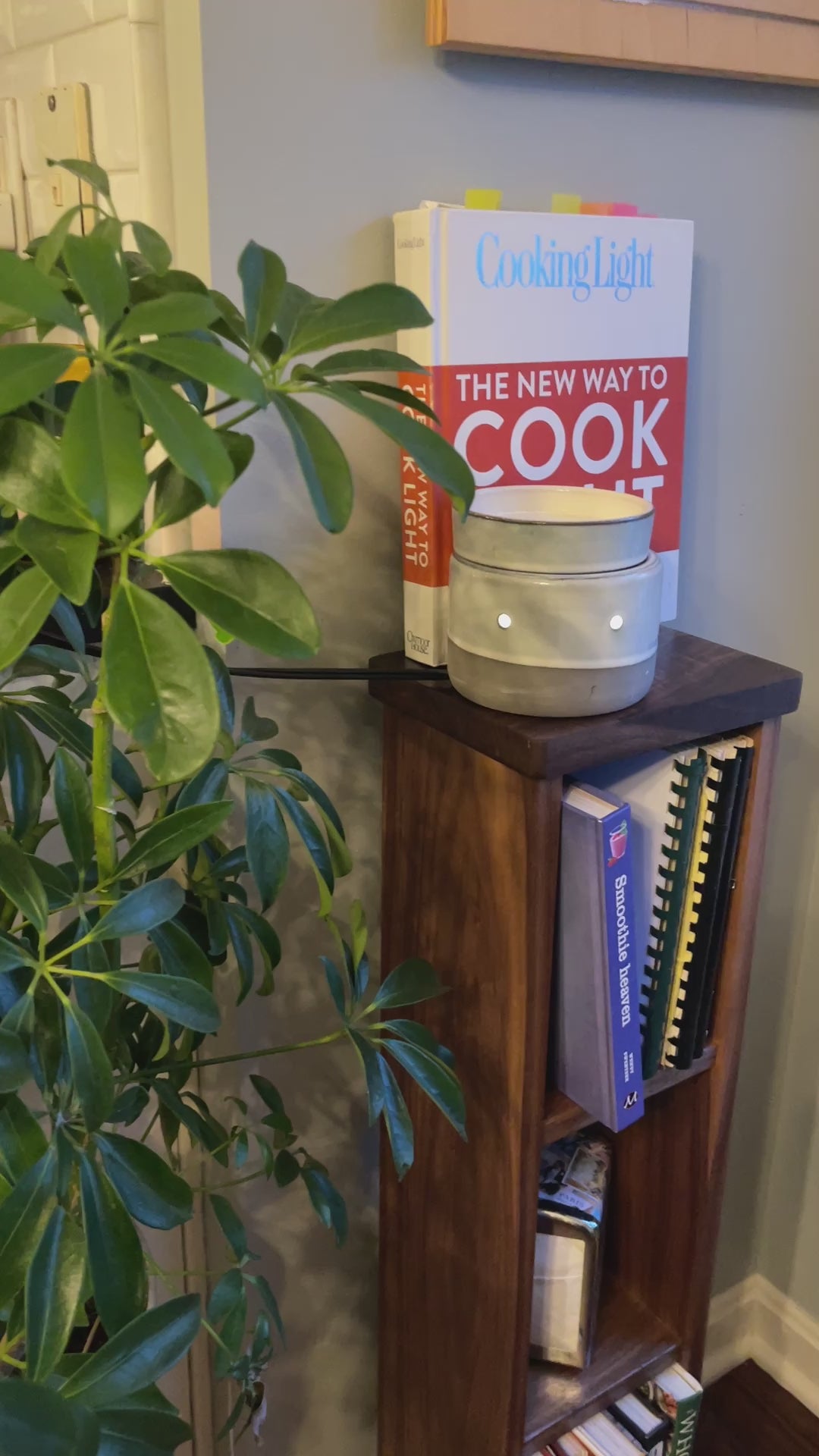

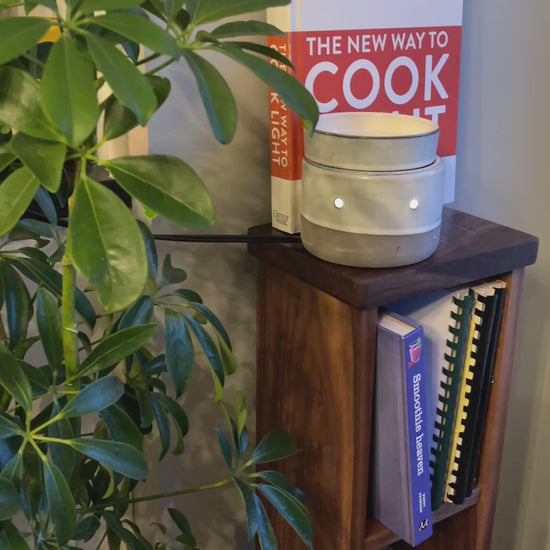

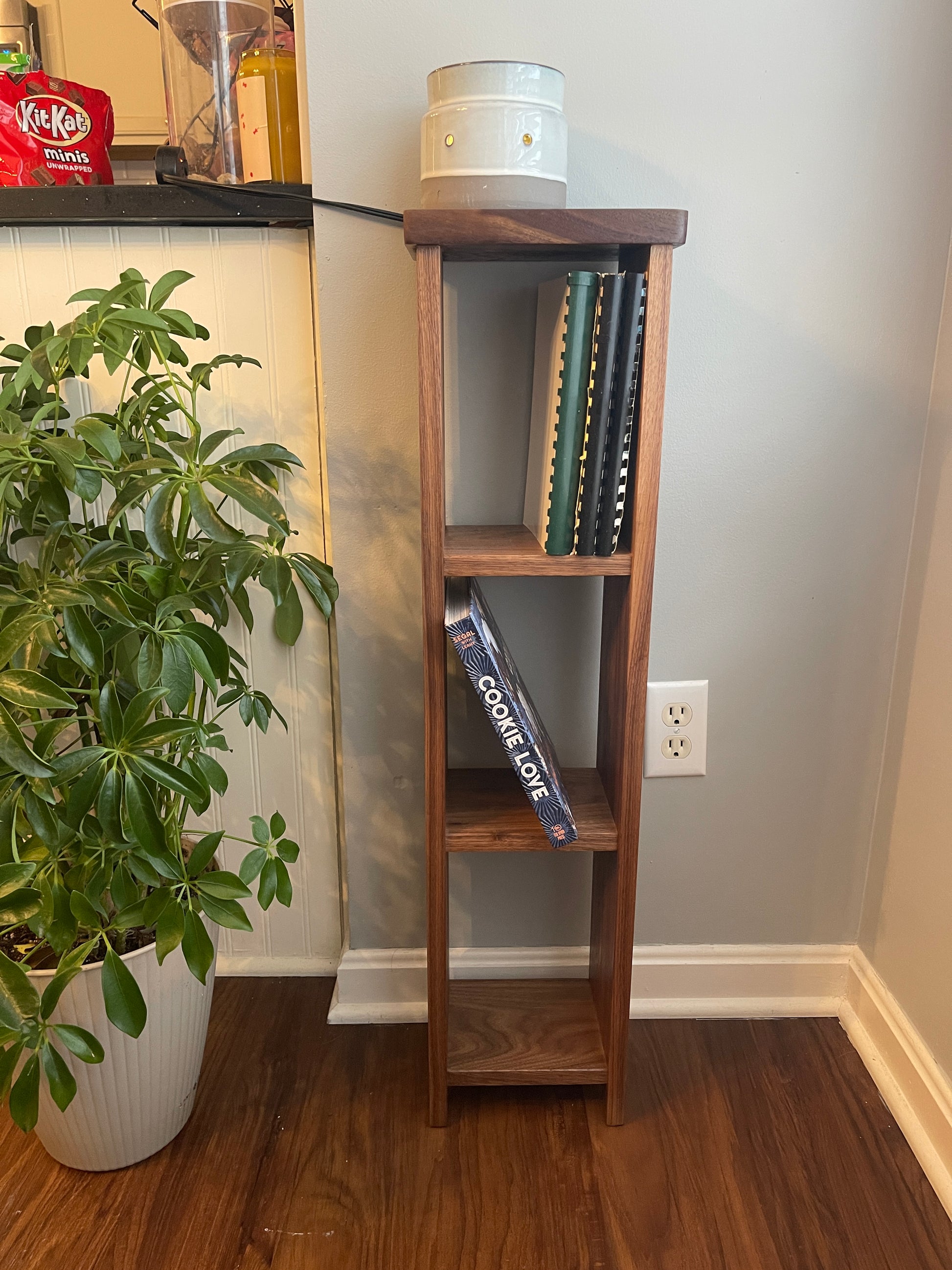

Please note that this listing is for a digital file, and not a physical product. The images are for illustrative purposes only and made with 3/4" (milled 4/4 lumber) Cherry and walnut.

Assembly Instructions

Prepare Materials: Gather all necessary materials. Ensure that your chosen wood is of suitable quality and dimensions for the project. 3/4" Plywood is used in the images. Files included for 0.720” plywood thickness and 0.750” material thickness .

Cutting (CNC): Utilize the provided DXF file to accurately cut the table components using a CNC machine. Follow the cutting instructions carefully to achieve precise results.

Assembly: Assemble the table components by plugging the legs into the top. Ensure a snug fit for stability and structural integrity.

Finishing Touches: Once assembled, you may choose to apply a finish or stain to enhance the appearance of your table. Allow sufficient time for the finish to dry before using the table.

Note: Please exercise caution and follow all safety guidelines when operating machinery or tools. Always wear appropriate protective gear and work in a well-ventilated area.
